Gli accessori

STAZIONE RADIO


GLI ACCESSORI
Click sulle immagini per ingrandirle

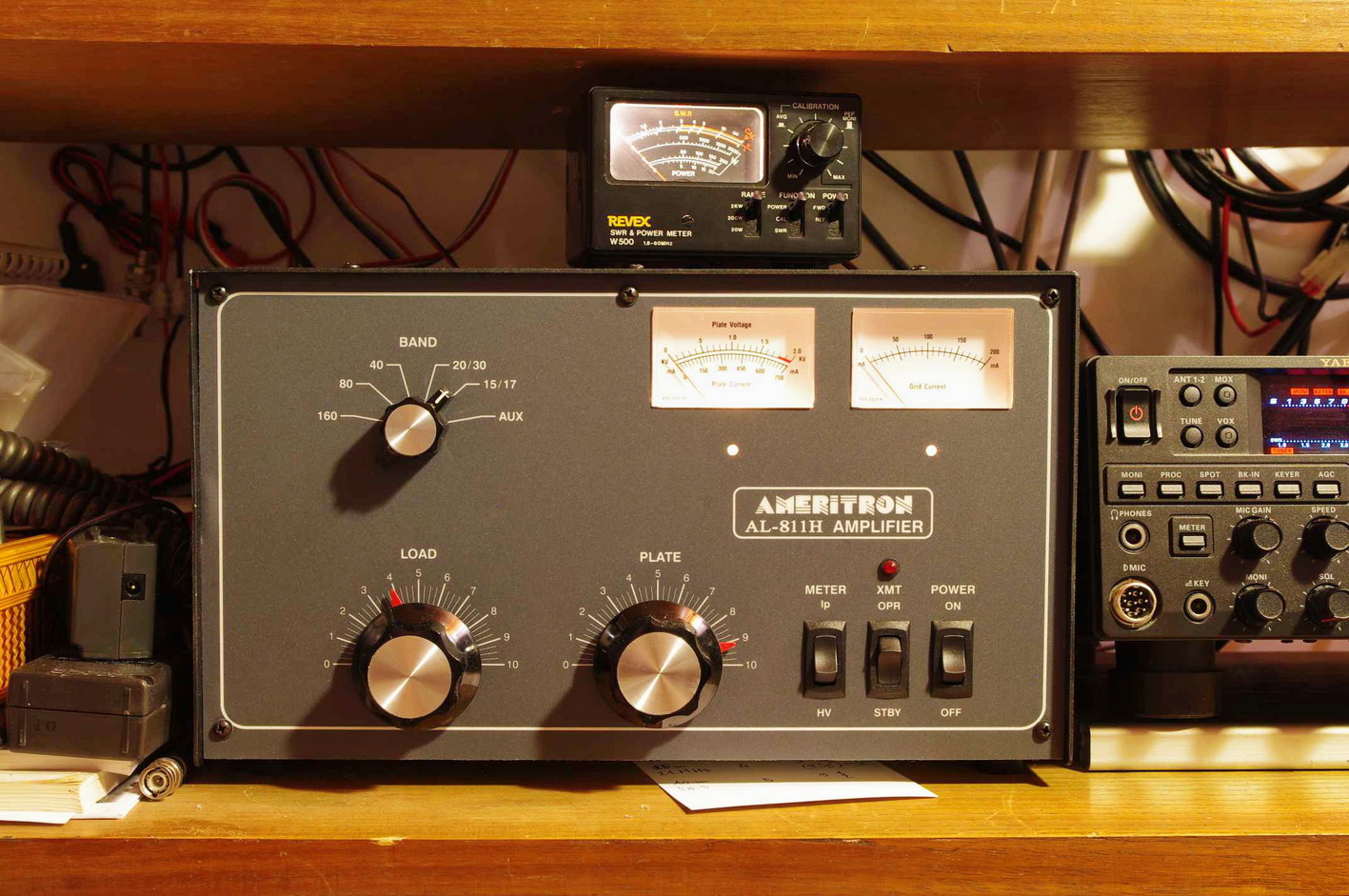

LINEAR Amplificator HF   AMERITRON 811 H
Only the AMERITRON AL-811H gives you four fully neutralized 811A transmitting tubes. You get absolute stability and superb performance on higher bands that can’t be matched by un-neutralized tubes.

You also get efficient full-size heavy duty tank coils, computer grade capacitors, heavy duty high silicon core power transformer, slug tuned input coils, operate/standby switch, transmit LED, ALC, dual meters, QSK compatibility with QSK-5 option and much more!

SPECIFICATIONS:
• Output power: 800 Watts PEP, 600 Watts CW.
• All Band Operation: Covers 160-15 Meters including WARC bands. Can be user modified for12 and 10 Meters.
• Four 811A Tubes: Uses four rugged, fully neutralized low cost 811A PA tubes.
• Vertical Tube Mounting: Prevents shorting of tube filament/grid, prolongs tube life.
• Fully Neutralized: Improves stability and performance on higher bands.
• Input Tune Circuit: Adjustable rear panel slug tuned input circuit.
• ALC Control: Built-in adjustable ALC control.
• Vernier Reduction Drives: Tuning and loading reduction drives make tuning smooth and easy.
• Dual Illuminated Meters: Monitor vital operating functions.
• Heavy Duty Power Supply: 17 pounds, high silicone steel core transformer and computer grade filter capacitor gives 1700 Volts high voltage at no load and 1500 Volts at full load. Multi-Voltage Operation: User selectable for 100/110/120/210/220/230 VAC operation. Shipped with transformer installed and wired for 120 VAC for domestic model or 240 VAC for export model.
• Air-Cooled: Quiet pressurized ventilation keeps tubes safely cooled. QSK Compatible: Optional external electronic pin diode Transmit/Receive switch. QSK-5
• Attractive Lexan front decal
• One Year AMERITRON warranty.
• Dimensions: 8 ¼" x 13 ¾" x 15 ½".
• Operating Weight: 32 lbs.
• Made in USA

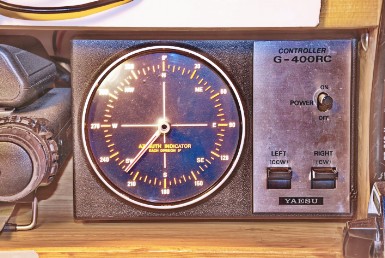

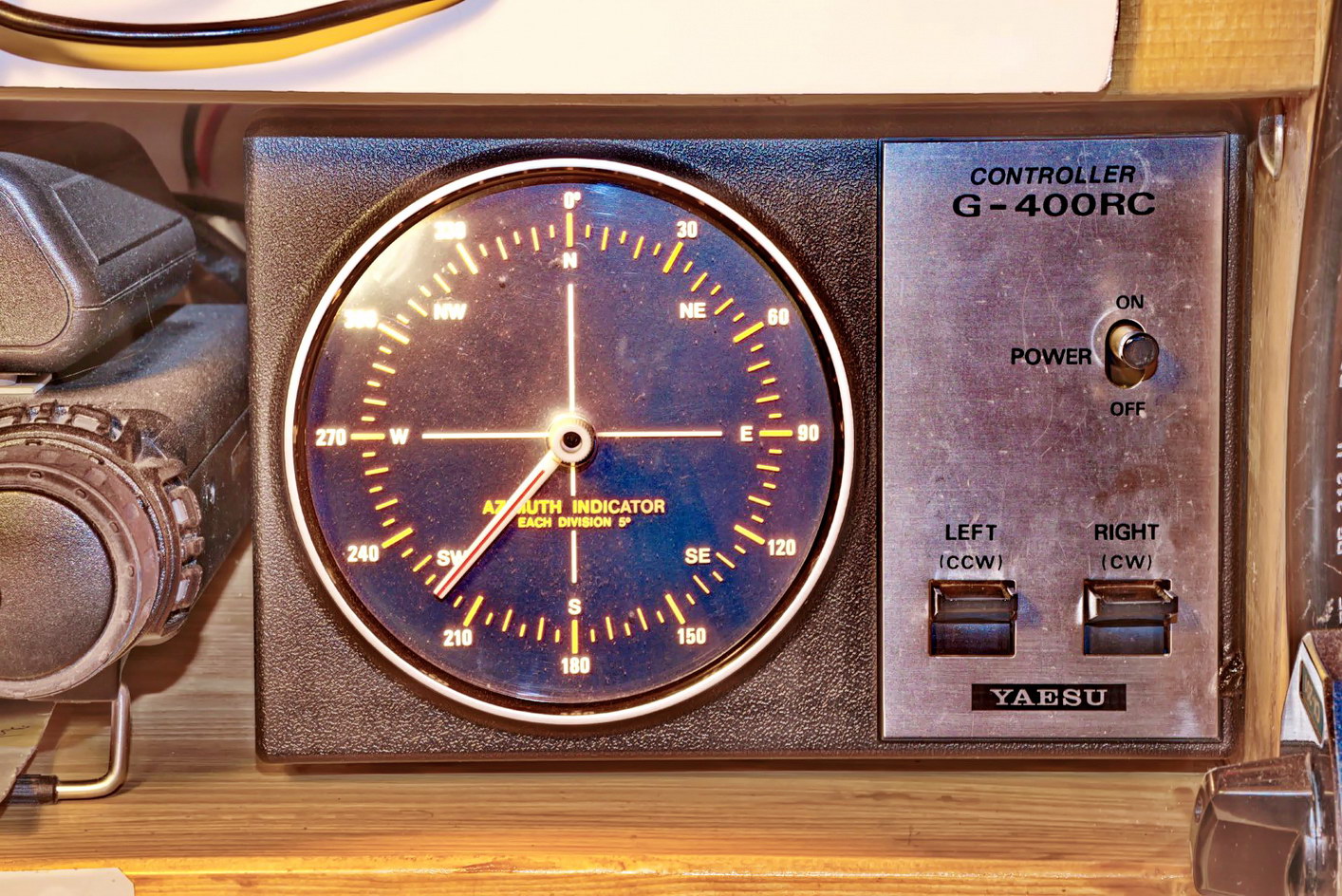

Type: Azimuth rotator
Voltage: Mains
Power consumption: 40 VA
Motor voltage: 24 V, split phase
360° rotation time: 50 seconds
Rotation torque: 600 Kg/cm
Braking torque: 2000 Kg/cm
Max wind load area: ?
Max dead vertical weight: 200 Kg
Control cable: 5 conductors, #20 AWG or better
Mast diameter: 38-63 mm
Dimensions (W*H*D): Controller: ? mm
Rotator: ? mm
Weight: Controller: 3.2 Kg
Rotator: 4.5 Kg
Manufactured: 19xx-19xx
Other: 360° readout

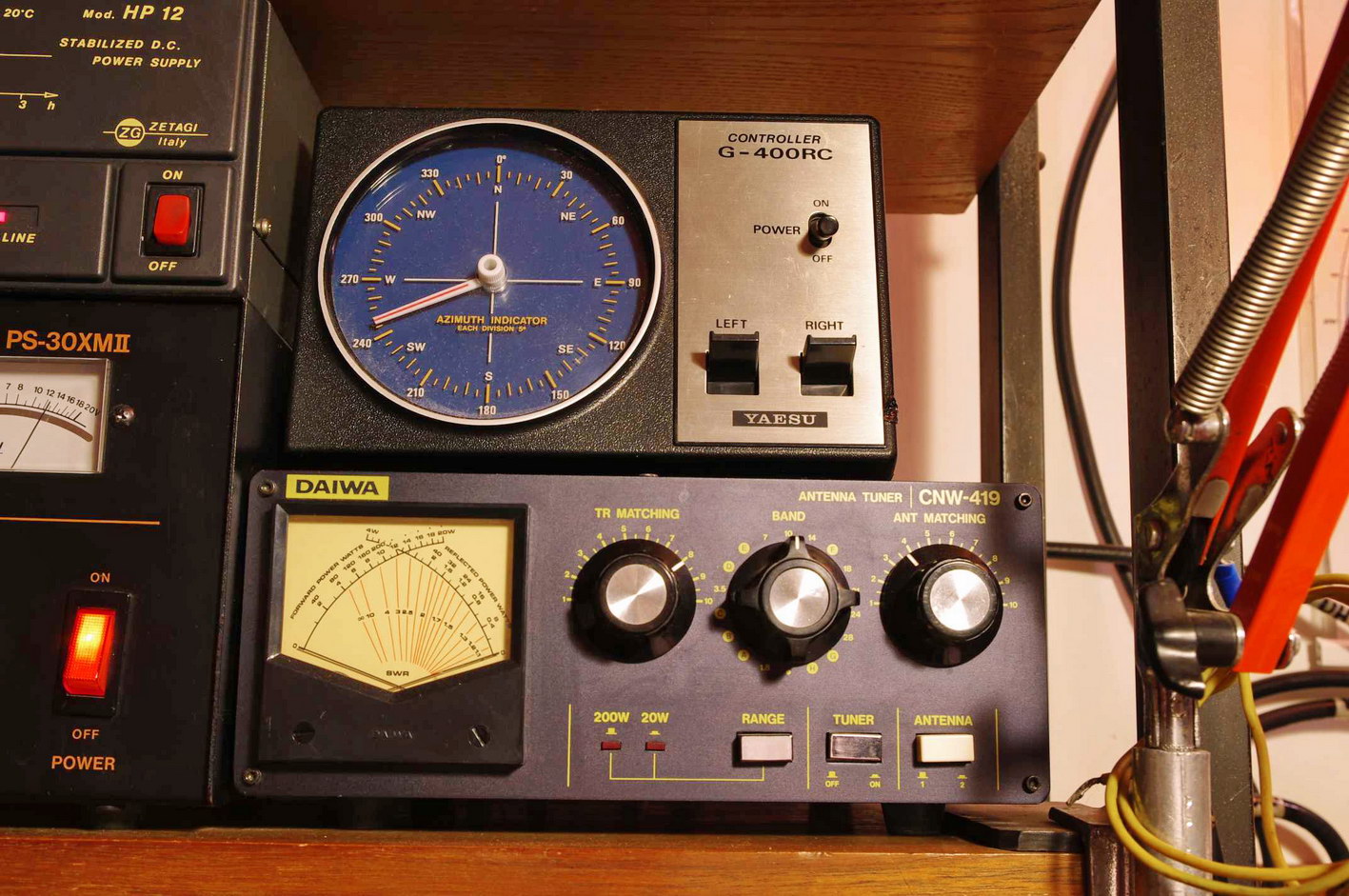

Accordatore d'antenna DAIWA (per Kenwood 830)

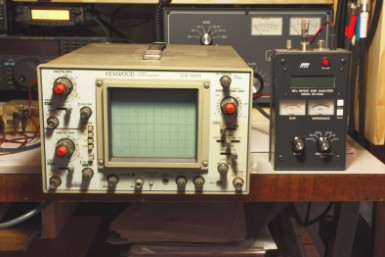

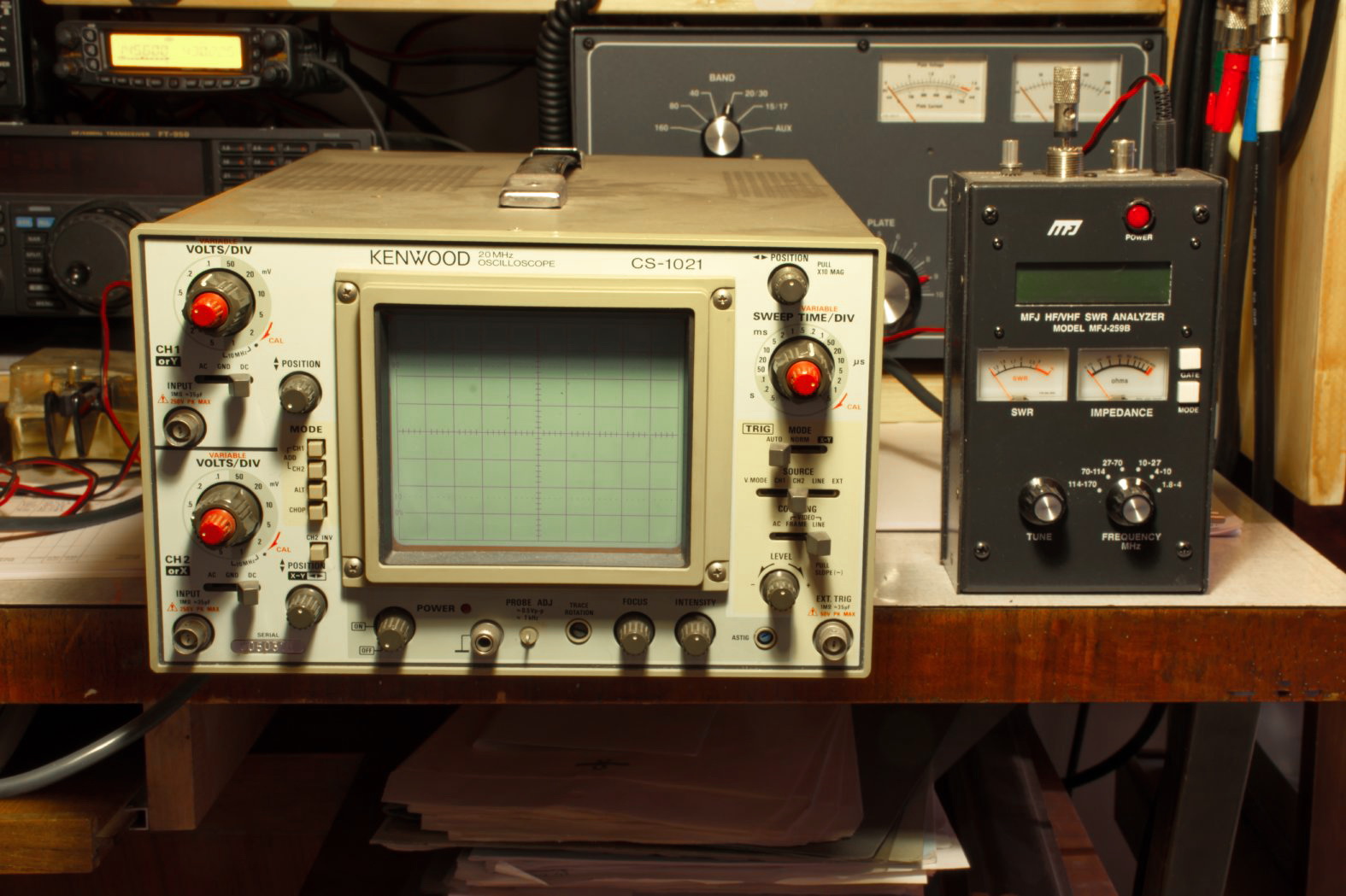

Oscilloscopio e analizzatore d'antenna.
